DISEGNO™ STEAM

Includes built-in “Auto Flush”, steam head, and TechPad Controller. Limited lifetime steam unit warranty.

Disegno 01 Package

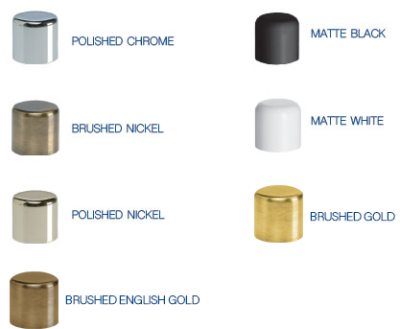

Steamhead Finishes

TechPad Controller

DISEGNO™ Steam TechPad Controller enables easy to use controls for the shower, steam production, audio system, fan, lighting etc. with a simple touch. With Bluetooth streaming built in (speaker not included) you can listen to your favourite music from your smartphone while you shower, and your device stays dry in another room!

Product Comparison Table

Includes 3/4″ round steam head nozzle

MODELMAX C.U FT.KWAMPSFINISHPRICE $
DN-175175625 Single Phase
Chrome3690
Polished Nickel3750
Brushed Nickel3750
Matte Black/Matte White3750
DN-2502507.531.25 Single Phase
Chrome3960
Polished Nickel4020
Brushed Nickel4020
Matte Black/Matte White4020
DN-375375937.25 Single Phase
Chrome4115
Polished Nickel4175
Brushed Nickel4175
Matte Black/Matte White4175
DN-47547510.543.75 Single Phase
Chrome4225
Polished Nickel4285
Brushed Nickel4285
Matte Black/Matte White4285
DN-575 includes 2 steam heads5751250 Single Phase
Chrome4610
Polished Nickel4730
Brushed Nickel4730
Matte Black/Matte White4730
DN-625 includes 2 steam heads62513.556.25 Single Phase
Chrome5425
Polished Nickel5505
Brushed Nickel5505
Matte Black/Matte White5505
DN-900 includes 2 steam heads9001562.5 Single Phase
Chrome6725
Polished Nickel6925
Brushed Nickel6925
Matte Black/Matte White6925

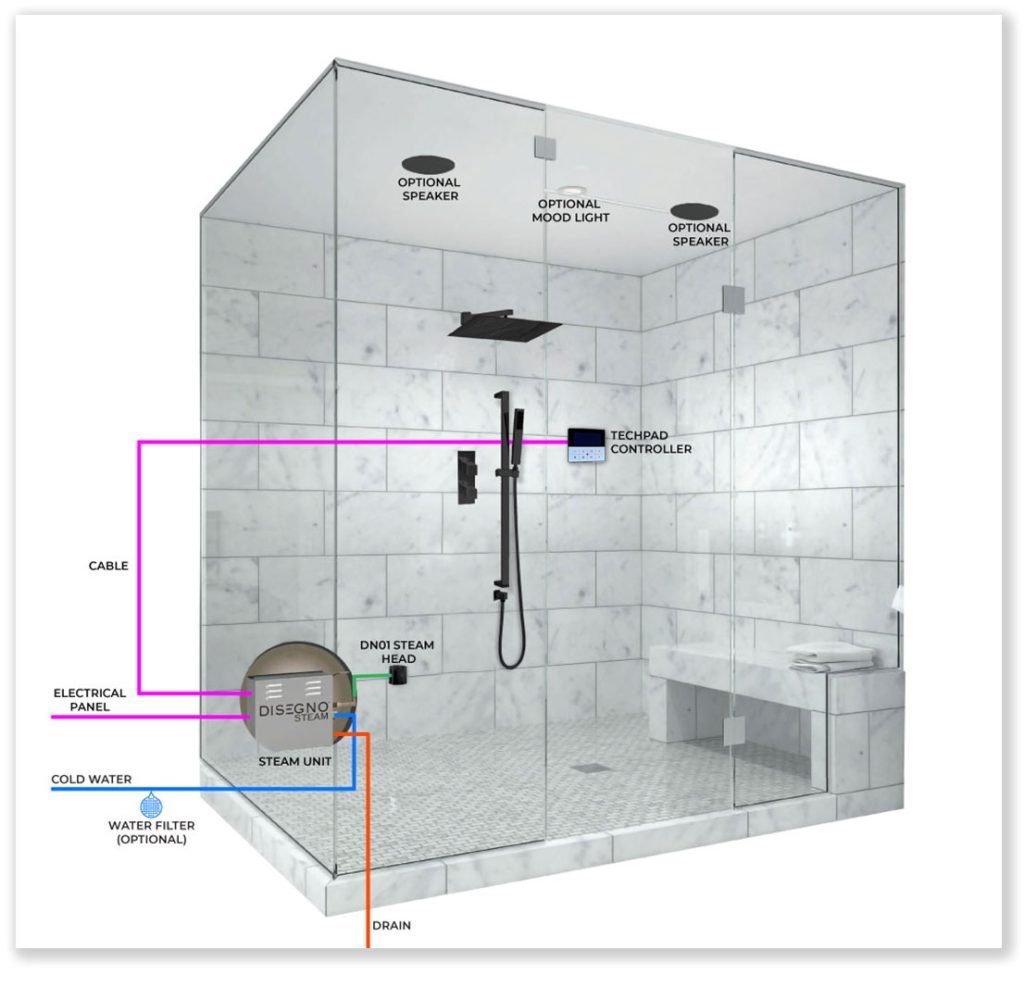

Guideline for Installation

Guideline for Sizing Steam Unit

Determine the width, height, and length (in feet) of the steam shower. Calculate the basic volume in cubic feet by multiplying the three measurements together.

L x W x H = CUBIC FEET x % (wall finish)

Depending on the material used in the shower, you may require to upsize the steam unit.

Glass Block Wall15% per wall
Glass Wall15% per wall
Outside Wall25%
Cermaic or Porcelain Tile35%
Natural Stone100%

If you require assistance in determining the unit size, please feel free contact customer service at Aquadesign (1-877-851-4915) or contact us at info@aquadesign.ca.

Steam Unit Accessories

Speaker

DI-SPK-01

  • 100W Marine Speaker
  • 6″ diameter
  • Available in white and matte black
  • White: $129.00
  • Matte Black: $129.00

Steam Head

DN-01

  • Available in Chrome, Polished/Brushed Nickel, Matte Black or Matte White
  • 2″ x 2″
  • Chrome: $180.00
  • Polished Nickel: $225.00
  • Brushed Nickel: $225.00
  • Matte Black/Matte White: $225.00

Mood Light

MDLGT-01

  • 4 colour cycling
  • Green; Yellow; Blue; Red
  • Chrome trim
  • 2.5″ diameter
  • Chrome Trim: $299.00



Drip Pan

PN-01

Will work with the following Steam Units:

  • DN-175
  • DN-250
  • DN-375
  • DN-475
  • $350.00

Drip Pan

PN-02

Will work with the following Steam Units:

  • DN-575
  • DN-625
  • DN-900
  • $400.00
